Introduction

One of my friends recently told me about the Langjam Gamejam, a really awesome challenge where you create a programming language and a game using that language in just one week! Naturally I was fascinated by the idea since I loved programming games in high school, and I love making programming languages.

So, I set out to create Onion, and used it to create Hold The Line!, a small 2D strategy game using the Onion2D engine built into the standard library.

The programming language is inspired by LISP, but with a ton of syntactic sugar and special forms to make it easier to read and write. The engine is inspired by the LÖVE framework for Lua, and provides a simple way to create 2D games with minimal boilerplate.

Onion’s Design

Design Goals

The purpose of Onion’s design was based on two pressures:

• I needed a language easy enough to implement in a short amount of time for a game jam.
• I needed it to support rich features to enable game development.

Now, despite my love for LISP and its excellent & elegant design, I find it incredibly difficult to read due to the syntax. Prefix syntax does not come naturally to me, and the turbo-nested layers of parens make it impossible to tell what code section I’m looking at sometimes.

I wanted to keep the core beauty of LISP, which makes it so easy to implement, while also putting bandaids on the drawbacks. As a result, I struck a balance where, the semantics of the Onion language are just LISP’s: the core interpreter is just running a pure Scheme-like LISP. Instead of modifying the interpreter, I added loads of special forms and parser features to enable all the crazy features!

Peeling The Onion

A Familiar Example

First, let’s take a look at some pure Scheme-like code, and how we might modify it to be easier to read.

(defun fib (n)
    (if (<= n 1)
        n
        (+ (fib (- n 1)) (fib (- n 2)))))

This code, specifically to non-LISPers such as myself, is pretty difficult to read; the same code in Python or C is significantly more readable.

Let’s see if we can make it easier by introducing some Onionisms.

(defun fib (n)
    (if n <= 1
        n
        (fib n - 1) + (fib n - 2)))

Wow, that shaved off some parentheses and made it easier to read the math! Additionally, both of these forms are valid Onion code, so write it however you’d prefer.

Alien Features

Operator Syntax

Onion, as you may have noticed, supports infix operator syntax for common mathematical and logical operations. This means you can write expressions like:

x = 10 + 5 * 2
y = x >= 20 and x < 50

Here’s a table of some of the more salient ones, although we’ll cover . later:

Blocks

Onion performs chained operations with do blocks, which are simply a series of expressions that return the last expression’s value.

result = (do
    (println "Calculating...")
    x = 10 + 5 * 2
    y = x >= 20 and x < 50
    (if y
        "x is between 20 and 50"
        "x is not between 20 and 50"
    )
)
(println result)

The do block doesn’t have any cool monadic properties or anything fancy like that, but it’s useful for creating a short block that can do more than one thing while still returning a single value.

Onion’s shorthand for this is the curly brace syntax: all do blocks can be replaced with curly braces.

result = {
    (println "Calculating...")
    x = 10 + 5 * 2
    y = x >= 20 and x < 50
    (if y
        "x is between 20 and 50"
        "x is not between 20 and 50"
    )
}
(println result)

Tree Map & HashMap

Collections like maps are essential for developers to use conveniently.

To declare an ordered map in Onion, you simply use the square brackets [] with key value pairs:

map = [x 10 y 10]
;; The `?` function accesses lists
;; and maps with a key
(println map ? 'x)

You can also declare a hashmap instead by adding a hashtag!

map = #[x 10 y 10]
(println map ? 'x)

Modules

The map types above are used heavily in the standard library: the standard library itself is implemented as several hashmaps of functions (stored as references, of course).

(println OS)
(println IO)
(println String)
(println Collections)
(println Math)
(println Reflect)
(println Time)
(println Game)

Pointers

Now, I said earlier the core semantics of Onion were pure Scheme-like LISP. There’s one exception, but it doesn’t change the actual eval code implementation: references.

References are an Atom value that contain a shared pointer to another expression. Unfortunately, Onion reserves its god given right to mutate these references as it damn well pleases.

All of the code that manipulates references, though, is done independent of the eval implementation! Each of these operators you’re about to see are all special, builtin functions!

;; `new` is a function that takes a value, and returns
;; a shared pointer constructed with it!
p1 = new #[x 10 y 10]

;; `.` here is also a function: it fetches the member
;; with the associated symbol. If the member itself
;; is also a function, some tricky stuff happens!
;; We'll see later!
(println p1.x)

;; `=` checks if the left is a member access first,
;; and modifies the referred value if so. Otherwise
;; it declares a new variable!
p1.x = 5

;; This will print `#[x 5 y 10]`
(println p1)

Structures

Now that we have smart builtin functions like . and = that can support the kind of black magic that typical programmers are used to, the standard library has some helpers to get us a little bit further!

(struct Point (x y)
    ;; Get the distance between two points
    (distance (other)
        (sqrt (self.x - other.x) * (self.x - other.x)
            + (self.y - other.y) * (self.y - other.y))
    )

    ;; Shift this point over by a dx and dy
    (shift (dx dy) {
        self.x = self.x + dx
        self.y = self.y + dy
    })

    ;; Return a string formatted with the point data
    (show ()
        (String.fmt "({}, {})" self.x self.y)
    )
)

p1 = (Point 5 0)
(p1.shift !5 0)
(println (p1.show)) ;; Will print `(0, 0)`

p2 = (Point 1 1)
;; Will print the square root of 2
(println (p1.distance p2))

The struct builtin is simply a function that creates a constructor with the struct name: the constructor creates a new reference, populates it with the members, and returns it.

Whenever . is accessed and a function is returned, the . operator adds the parent reference (self) to the environment for the method: the method’s environment acts like self is a captured variable in a normal closure.

Drawbacks

Onion’s design was very shortsighted given the time constraints. I failed to implement an error type beyond nil early on, and so I had all my standard library functions return a nil failure result by default if there was a type mismatch or invalid arguments.

Dear god that was the biggest I could’ve made.

I spent hours trying to track down bugs that should’ve been much easier to fix, and truthfully it would’ve been faster to go back and reimplement the standard library functions sooner to panic. I didn’t prioritize this until the 17th, and my development speed EXPLODED when I was finally able to track down errors, instead of having nil propagate into every nook and cranny of the code.

Additionally, because Onion doesn’t need parentheses for lots of expressions, it made it exponentially worse and really unintuitive to identify these bugs. Many times, I accidentally left out the parentheses in comparison expressions for method calls tile.get_total_power > 0 instead of (tile.get_total_power) > 0, and everything would turn to nil for seemingly no reason.

Before I added panicking to all the standard library calls on errors, it was unendingly frustrating to try and debug ANYTHING more complicated than a few dozen lines.

Benefits

Despite those damning drawbacks, there are a lot of benefits to Onion! Once I did finally add those panics, Onion became really nice to write in! It’s like a choose-your-own-adventure Python: it’s incredibly easy to add new functionality to the core language however you’d like!

I’m very proud of the ease of implementing Onion: the core language is only defined in less than 1000 lines (src/expr.rs, src/context.rs, although this doesn’t count the parser)! Additionally, all the cool developer features are things that could be imported or provided by external libraries in a “real” implementation. I’m very glad that holding steadfast to the LISP core paid dividends: the only other core language that could support this kind of quick development would have to be a FORTH, which I’m very unfamiliar with at the moment.

Onion2D

Inspiration

Onion2D is certainly the most developed component of the language. It’s heavily inspired by the LÖVE framework for Lua (although I’ve never used that engine). I saw that it was used for Balatro, gave the wiki a look, and thought it was really neat!

I was particularly impressed with the Callbacks section of the wiki: it looks so simple!

Onion2D’s design tries to mirror this closely: I wanted the core functionality to be in just a handful of callbacks, with simple drawing and IO functions.

Demo

I first started with a couple of examples: Pong and Game of Life. These helped me lay out the core functions of the engine and build a tiny framework for setting up games in a convenient, mostly procedural way.

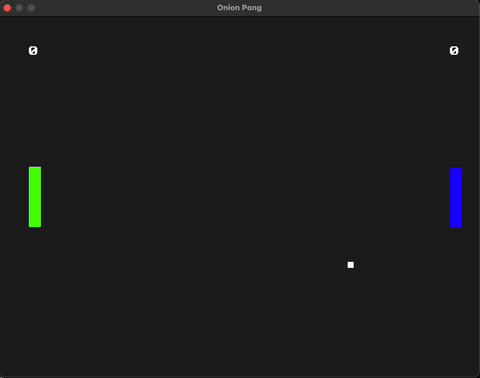

Pong is incredibly easy to write, it fits in ~60 lines of code!

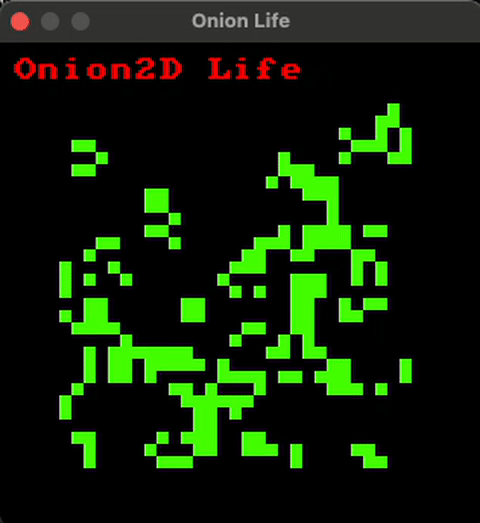

Game of Life is a bit more dynamic, and I used LISP’s traditional purely functional approach when handling grid updates. The approach I took was ~100 lines, but I’m certain it could be done significantly better, especially if structs and references were used to represent each tile and for counting neighbors. That way, you wouldn’t be copying the list and constructing a new one each iteration like I did with map.

Introduction

The core of the game engine is governed by three functions:

When Game.run is called with some window parameters, the engine initializes the window, runs load, and sets up a game loop that repeatedly calls update and draw as fast as possible. These three functions are all that are required to make a game in Onion2D! Game.run will look them up in the current scope and call them automatically, so you just have to define them!

state = new [
    count 0
]

(defun load () {})

(defun update (dt) {
    (if (Game.is_key_down "UP")
        state.count = state.count + 1
    )

    (if (Game.is_key_down "DOWN")
        state.count = state.count - 1
    )
})

(defun draw () {
    (Game.clear 0x000000)
    (Game.draw_text 10 200 (String.fmt "Count: {}" state.count) 0xFFFFFF 2)
})

(Game.run "My First Onion2D Game" 500 100)

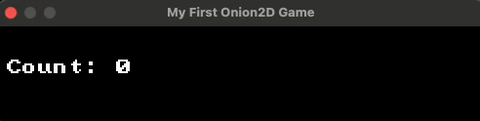

This simple example just functions as a counter while holding down the UP/DOWN arrows! Pretty neat right?

Hold The Line!

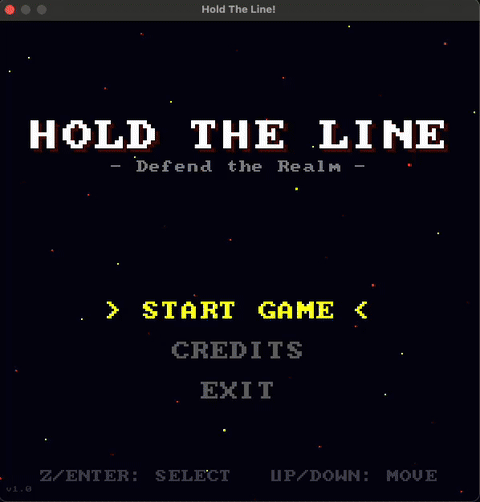

Now, for the moment you’ve all been waiting for: the game I made for the LangJam GameJam using Onion2D!

It’s based on the UFO50 game Avianos, which is a 2D army management/strategy game where you raise units, construct buildings, and harvest resources to beat your opponent. I’ve spent countless hours on it, which lead me to make this.

NOTE: Originally, I set out to create a factorio-like game using a cellular automaton. This was way too big in scope, and I got really frustrated trying to come up with all the rules and recipes in my buggy programming language. I threw it out and started on this instead!

The motivation for this was that the game only had one major mechanic: the battle visualization. This acts as a random coinflip for casualties and wins/losses, while also providing a really sick graphical representation of the units going to war.

Once I had that mechanic implemented, I essentially just needed to graft a fancy menu on top of it! That’s pretty much how the game functions: it’s a constrained menu that lets the player deploy units and start the battle function!

I’m really pleased with this game design: I feel like it mirrors the engine in that it’s very quick and dirty to implement, while still maintaining lots of beauty. Each unit type has a different kind of formation with varying sizes, and each unit type coheres, separates, and aligns differently. The simulation is performed with Boids: each squadron has an enemy target, and each of the units within the squadron attempt to destroy the target. Each unit type forms a different formation with unique formation sizes: infantry has the largest squadron size of 8, shrinking down to 3 with artillery.

Conclusion

What a fun week!!! Going into this, I had a really difficult time picking a project idea. It’s really difficult to come up with a game idea that is both fun and small in scope! I’m really pleased with the results, though — it came out so much better than I anticipated at the start of the jam, especially since I switched ideas halfway through!

If you want to give the game a try, you can download it here below! Hold The Line! on Itch.io

Thank you for reading!
